Aviation GSE Conveyor Belt Loader For Baggage Transfer
Conveyor Belt Loader for Cargo Loading and Unloading in airport,
CBL, Airport Ground Support Equipment, Conveyor Loader
Description of Conveyor Belt Loader
The TK-XC80C Conveyor Belt Loader offers leading performance and
design which comply with IATA: function sepicification in AHM-925
and safety requirements of GSE in AHM-915/913/910.
| Dimensions | | Performance | |
| Overall Dimensiosn | 8130*2145*1955mm | Maximum Speed | 25km/hr |
| Wheelbase | 3000mm | Front End Service Range | 1200-4325mm |
| Front Wheel Tread | 1725mm | Rear End Service Range | 525-1379mm |
| Rear Wheel Tread | 1695mm | Boom Uniform Load | 135kg/m |
| Minimum Turning Radius | 6400mm | Cargo Weight Limit | 400kg |
| Ground Clerance | 130mm | Conveying Speed | 0.2-0.5m/s |
| Gross Vehicle Weight | 3660kg | Boom Belt Width | 600mm |
Applicable Aircraft:
Suitable for all civil aircrafts including A380.
Hightlights:

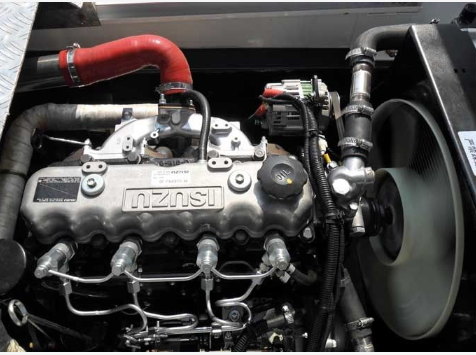

Imported ISUZU C240 engine and OKAMARU automatic transmission
ensuring a long time reliable operation.
Wider boom width and 3 T front axle load, better than conventional
2.5 T front axle capable to handling larger cargo smoothly.
Equipped suspension on front axle facilitaing a smooth driving and
comfortable operation.
Imported branded engine and transmission. Top brand hydraulic
system components such as steering cylinder and stabilizers.
Low gravity center and high safety factor robust structural design.
Equipped with leaf spring and tubular shock absorber to reduce
vibration and shock.
Equipped with Italy Casappa manual pump, to ensure a safe emergency
operation.
Programmable logical controller controlled electrical system,
reliable and easy to diagnose.
Automatic diagnosis function, easy to maintain.
TECHKING is one of the largest Ground Support Equipment
manufacturer incorporated since 1999.
At TECHKING, we realize our customer's confidence is relying on us,
knowing that our equipment is dependable and reliable. We are
constantly improving and strengthening our service and products to
keep things runnning smoothly and constantly. With years of
constatnly research and development in the GSE field, TECHKING now
provides dependable and reliable GSE products in 18 series and over
50 different types to meet the full range of demands..
Adhere to the aim of optimizing cost and efficiency, TECHKING has
successfully won it's acknowlegment and aapproval by all the major
airlines and airports in China as welll as customers from 20
different countries and areas and now has grown to the leader of
ground support equipment manufacturer in China.
With our expertly trained and vastly experienced staff, TECHKING
has been providing 24/7/365 services, from manufacture to delivery
commissioning, training to after-sale services, assuring ou the
most dependable on-the-ramp performance.
