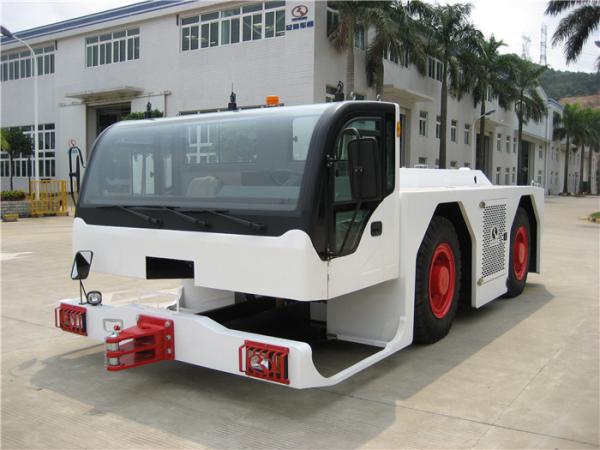

Diesel 120 KN Airplane Tow Tug Tractor
The aircraft includes B717; B727; B737; B757; B767-200; A318; A319;
A320; A321; A300; A310 or any aircraft below 300,000 kg. The
vehicle's ergonomic designed provides agility, visibility, durable
and reliable tractors. One of the unit designs is that it has three
antenna type safety swithces, similar to other raised cab heavy
tractors. Any one of these touches an onstacle, it will stop the
vehicle completely. This will prevent any accident happened.
We use Deutz engine, Dana transmission, Dana front and rear axle.
The driving cab is with 360 degrees visibility. It is a reliable,
economic and suitable for narrow body operation.
Description:
The TK-QY120C aircraft tow tractor is in full compliance with CAAC
and international standards, such as, IATA AHM 905, IATA AHM 910,
IATA AHM 913, IATA AHM915, IATAAHM 916, IATA AHM 955,MH/T6017 etc.
Specifications:
| Dimensions | | Performance | |
| Overall Dimensions | 5780*2200*1880 mm | Tow Bar Pull | 120 KN |
| Wheel Base | 2150 mm | Towing Capacity | 120 T |
| Front/Rear AxleTread | 1850 mm | Gross Vehicle Weight | 12 T |
| Ground Clearance | 160 mm | Maximum Speed | 30 km/hr |
| Turning Radius | 5500 mm | | |
| Front Hook Ground Clearance | 330 mm | | |
| Front Hook Ground Clearance | 300 mm | | |
Highlights:
Powerful and reliable powertrain, consisting of Deutz Engine, Dana
Transmission, Dana Axle, etc, ensuring durable and reliable
performance.
Independent dual circuit braking system to ensure a safety
operation.
Seperate independent heat disspator for engine, transmission, AC,
hydraulic system and radiator to avoid overheat.
Compact design, low gravity center and short wheelbase facilitating
an easy and flexible operation.
Centralized automatic lubricating system, lubricating all greasing
points automatically.
Equipped with emergency stop to stop all actions immediately to
prevent accidents.
4 wheels steering, 2 wheels steering, crab walk.
Easily observable hitches fn. An adjustable reflector and a hitch
light are equipped to facilitating rear hitch observation.
Equipped with jack point, to facilitate wheel replacing and
maintenance.
