TECHKING is one of the largest Ground Support Equipment
manufacturer incorporated since 1999.
Airport authorities and ground service providers work hard to make
flying as convenient as it can be for passengers with restricted
mobility (PRMs). Getting on and off aircraft can be a particular
challenge, or even impossible, for some passengers without the help
of a medical lift – otherwise known as an ambulift
It is that easier, faster and more convenient way of getting on and
off an aircraft for Disabled Passenger
Description:
The TK-TD60A Ambulift is build on TECHKING special chassis which is
featuing with low gravity center. It is in full compliance with
CAAC and European CE standards, such as, IATA AHM 921A, IATA AHM
910, IATA AHM 913, IATA AHM 915.
Specifications:
| Dimensions | | Performance Data | |
| Overall Dimensions | 6740*2500*3800 mm | Maximum Speed | 45 km/hr |
| Wheelbase | 3300 mm | Front Platform Service Range | 2200-6000 mm |
| Vanboday Dimensions | 4240*2400*2280 mm | Rear Platform Service Range | 0-500 mm |
| Front Wheel Tread | 2015 mm | Telescopic Platform Extension Range | 1100 mm |
| Rear Wheel Tread | 2015 mm | Vanbody Load Capacity | 1000 kg |
| Minimum Turning Radius | 17300 mm | Wind Resistance | 3.35 |
| Ground Clearance | 180 mm | | |
| Gross Vehicle Weight | 9500 kg | | |
Applicable Aircraft:
Suitable for all major civil aircraft including A380.
Highlights:
Patent special low gravity center chassis, featuing with good
reliablity.
Perkins engine and Allison transmission, ensuring low operation.
Eaton and Yuken hydraulic components ensuring a reliable
performance.
Extendable platform front platform facilitating an easy docking
operation

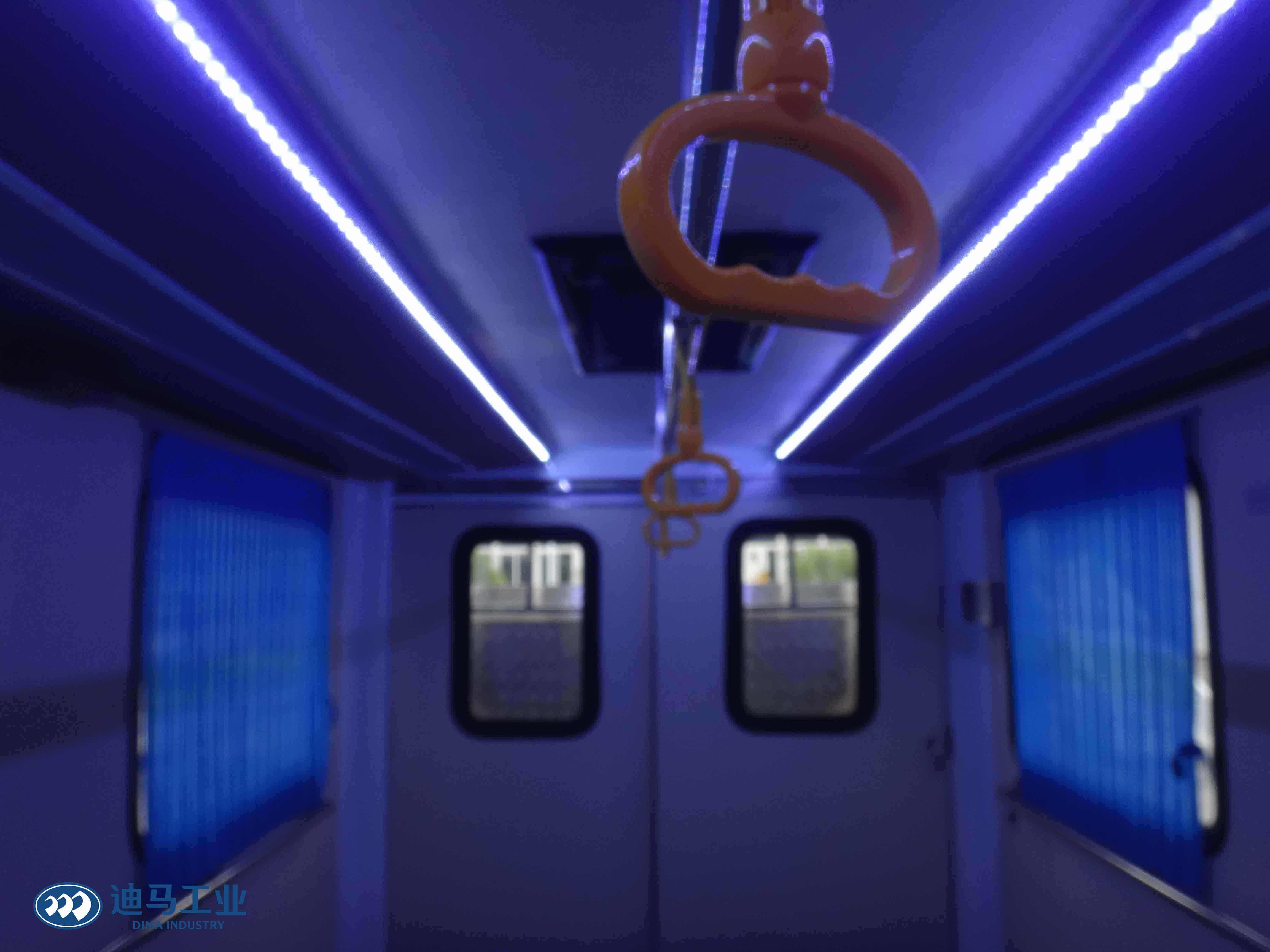

Air conditioned conditioned passenger cabin, perfect hot weathers
such as Middle-east.
PLC controlled, featuring accurate and reliable operation/
Safety Features:
Emergency Stop
Emergency Platform Withdraw
Anti-collision Sensor
Interlock to prevent moving when vanbody lifted
Interlock to prevent vanbody lifting when stabilizers not fully
extended
Interlock to prevent vanbody descending when stabilizers not fully
retracted
Interlock to prevent staibilzers retraction when vanbody is not
fully descended
Interlock to prevent hydraulic movements unless parking brake
engaged
Emergency Manual Pump
Emergency Electric Pump
