Ambulift, Medical Lift, Disabled Passenger Boarding Vehicle,
Disabled Ambulift, Disabled Hi-lift, Airport Medical Lift
Description:

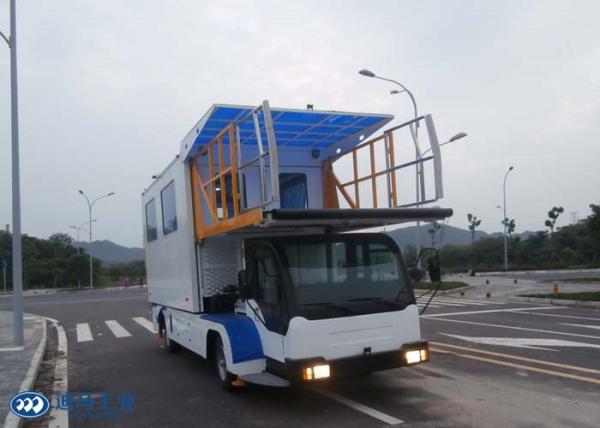

The TK-TD60 is a CE certified disabled passenger boarding vehicle
build upon TECHKING specail chassis. It is in full compliance with
CAAC and European CE standards, such as, IATA AHM 921A, IATA AHM
910, IATA AHM 913, IATA AHM 915.
Specifications:
| Dimensions | | Performance Data | |
| Overall Dimensions | 6740*2500*3800 mm | Maximum Speed | 45 km/hr |
| Wheelbase | 3300 mm | Front Platform Service Range | 2200-6000 mm |
| Vanboday Dimensions | 4240*2400*2280 mm | Rear Platform Service Range | 0-500 mm |
| Front Wheel Tread | 2015 mm | Telescopic Platform Extension Range | 1100 mm |
| Rear Wheel Tread | 2015 mm | Vanbody Load Capacity | 1000 kg |
| Minimum Turning Radius | 17300 mm | Wind Resistance | 3.35 |
| Ground Clearance | 180 mm | | |
| Gross Vehicle Weight | 9500 kg | | |
Applicable Aircraft:
Suitable for all major civil aircraft including A380.
Highlights:
Low gravity special chassis, featuring with good stability and high
wind resistance.
Branded power train and hydraulic components to ensure a reliable
performance.
Equipped with foldable rear platform, the front platform is
optional with extendable platform or 4-way adjustable platform.

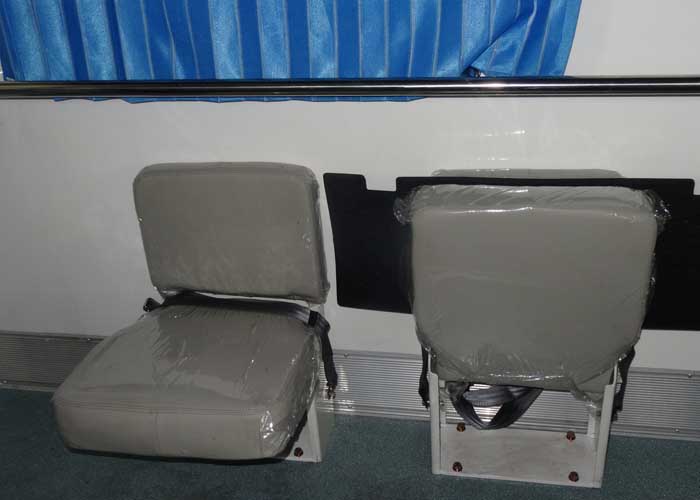

Thermo King air conditioner conditioned passenger cabin.
Programmable logic controller controlled hydraulic actions,
reliable and easy to diagnose.
Safety Features:
Emergency Stop Button
Emergency Platform Withdraw
Anti-collision Sensor
Interlock to prevent moving when vanbody lifted
Interlock to prevent vanbody lifting when stabilizers not fully
extended
Interlock to prevent vanbody descending when stabilizers not fully
retracted
Interlock to prevent staibilzers retraction when vanbody is not
fully descended
Interlock to prevent hydraulic movements unless parking brake
engaged
Emergency Manual Pump
