5.8m Airport Passenger Stairs, Passenger Steps, Passenger Boarding
Vehicle, Airport Ground Support Equipment, Pax Steps
TECHKING is one of the largest Ground Support Equipment
manufacturer incorporated since 1999.
At TECHKING, we realize our customer's confidence is relying on us,
knowing that our equipment is dependable and reliable. We are
constantly improving and strengthening our service and products to
keep things runnning smoothly and constantly. With years of
constatnly research and development in the GSE field, TECHKING now
provides dependable and reliable GSE products in 18 series and over
50 different types to meet the full range of demands..
Adhere to the aim of optimizing cost and efficiency, TECHKING has
successfully won it's acknowlegment and aapproval by all the major
airlines and airports in China as welll as customers from 20
different countries and areas and now has grown to the leader of
ground support equipment manufacturer in China.
With our expertly trained and vastly experienced staff, TECHKING
has been providing 24/7/365 services, from manufacture to delivery
commissioning, training to after-sale services, assuring ou the
most dependable on-the-ramp performance.
Description:
The TK-KT58 passenger stairs is build upon Techking chassis
featuring a superior reliablity and stability. It is in full
comliance with IATA AHM 905, IATA AHM 910, IATA AHM 913, IATA AHM
915, IATA AHM 916, IATA AHM
920, SAE-ARP836A and MH/T6029-2003 etc
Specifications:
| Dimensions | | Performance | |
| Overall Dimensions | 8150*2400*3670mm | Maximum Speed | 45km/h |
| Wheelbase | 3200mm | Platform Service Range | 2300-5800mm |
| Front Wheel Tread | 2000mm | Maximum Load Capaicty | 70 People (75kg/person) |
| Rear Wheel Tread | 2000mm | Platform Dimensions | 3150-3550*1900mm |
| Minimum Turning Radius | 6700mm | Ground Clearance | 180mm |
| Gross Vehicle Weight | 8500kg | | |
Applicable Aircraft:
Suitable for medium to large aircraft such as A300, A310, A320,
A340, A380, B727, B737, B757, B767, B747 etc.
Highlights:
Adopting TECHKING special chassis, featuring low gravity,higher
load capacity and more safety operation. 3 people on each steps and
16 people on platform, superior than standards' requirements of 2
people on each steps and 8 people on platform.
Weather-tight open driving cabin, facilitating an easier view when
operating, avoiding fault operation.

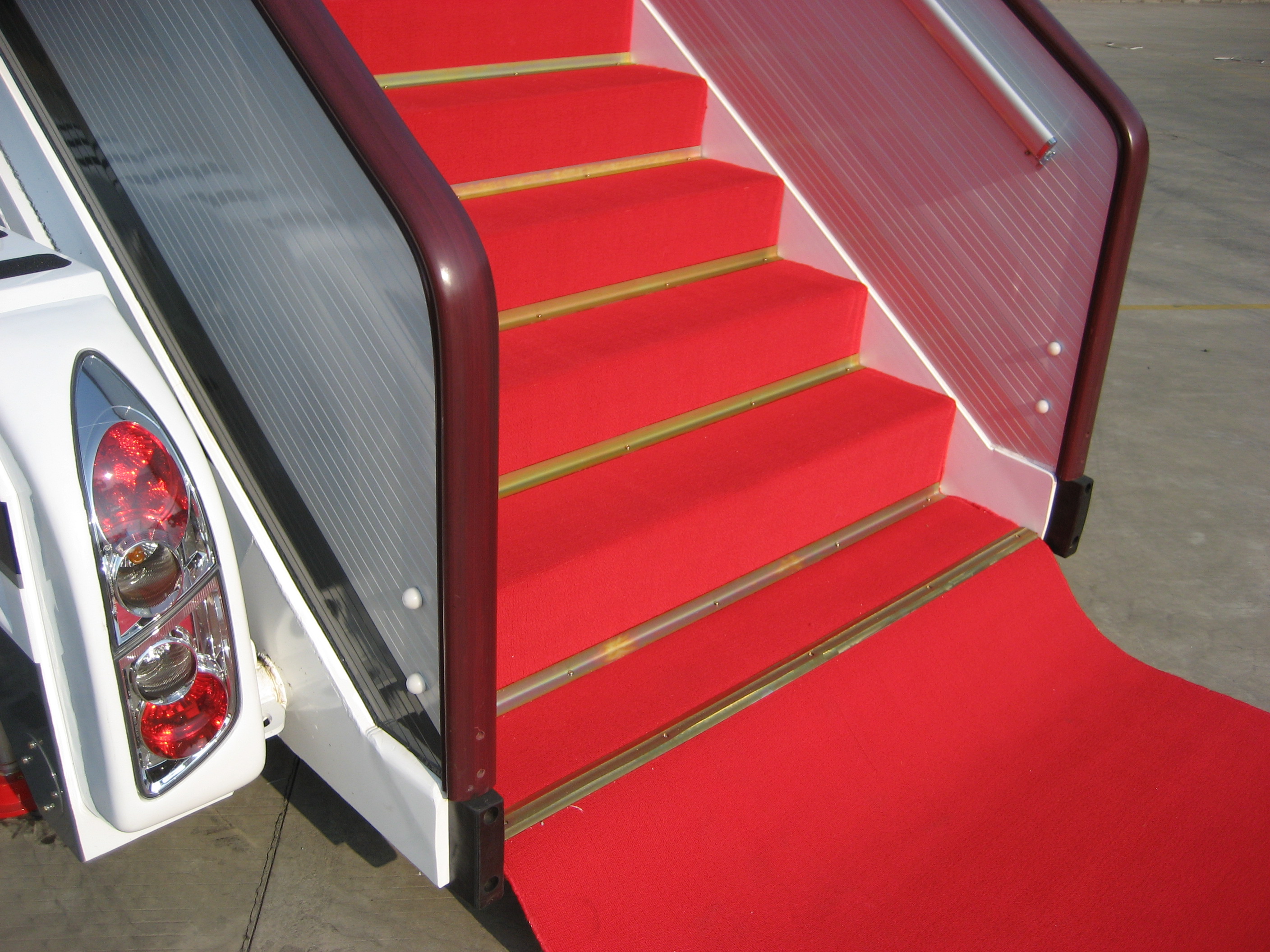

Equipped with 3mm thick non-skid aluminum alloy steps with
aluminium alloy side plate, ensuring elegant desgn as well as a
safer boarding experience.
Low gravity, higher load capacity and safer TECHKING special
chassis.
Unique patented arch wide view driving cabin, facilitating an
easier view when operating, avoiding fault operation
Heavy load 30mm patented anti-slippery aluminum alloy stairs.
Applicable for various aircraft with a sill height ranging from
2300mm-5800mm.
Easy un-crowding wide docking platform, avoiding possible
accidents.
Decades tested and optimized special chassis, optimized structural
design, high wind resistance and robust structural strength.
Various power train options
