360KN Aircraft Towing Tractor, Pushback, Aircraft Tow Tractor for
B747, Airport Tow Tractor, A330 Tow Tractor
TECHKING is one of the largest Ground Support Equipment
manufacturer incorporated since 1999.
At TECHKING, we realize our customer's confidence is relying on us,
knowing that our equipment is dependable and reliable. We are
constantly improving and strengthening our service and products to
keep things runnning smoothly and constantly. With years of
constatnly research and development in the GSE field, TECHKING now
provides dependable and reliable GSE products in 18 series and over
50 different types to meet the full range of demands..
Adhere to the aim of optimizing cost and efficiency, TECHKING has
successfully won it's acknowlegment and aapproval by all the major
airlines and airports in China as welll as customers from 20
different countries and areas and now has grown to the leader of
ground support equipment manufacturer in China.
With our expertly trained and vastly experienced staff, TECHKING
has been providing 24/7/365 services, from manufacture to delivery
commissioning, training to after-sale services, assuring ou the
most dependable on-the-ramp performance.
Description:

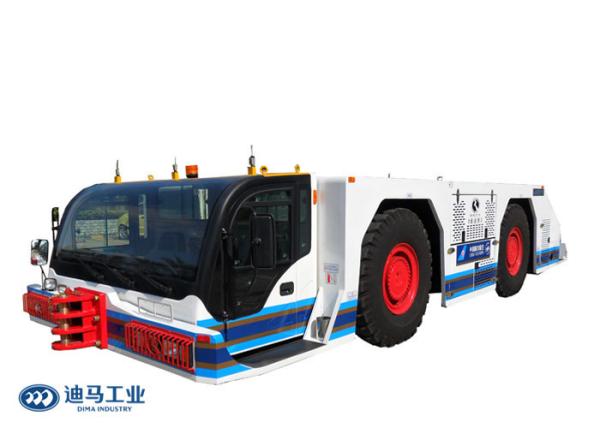

The TK-QY200 aircraft tow tractor offers reliable aircraft push and
pull service in full compliance with CAAC andinternational
standards, such as, IATA AHM 905, IATA AHM 910, IATA AHM 913, IATA
AHM915, IATAAHM 916, IATA AHM 955,MH/T6017 etc.
Specifications:
| Dimensions | | Performance | |
| Overall Dimensions | 9853*3060*1650mm | Tow Bar Pull | 360 KN |
| Wheel Base | 3400 mm | Towing Capacity | 450000 KG |
| Front/Rear AxleTread | 2550mm | Gross Vehicle Weight | 45000 KG |
| Ground Clearance | 200 mm | Maximum Speed | 30 km/hr |
| Min. Turning Diameter | 4053 mm | | |
| Front Hitch Ground Clearance | 460 mm | | |
| Rear Hitch Ground Clearance | 460 mm | | |
Applicable Aircraft:
A300-600, A310-200, A310-300, A321, A318,A319, A320, A330-200,
A330-300, A340-200, A340-300, A340- 300, A340-600, B717, B737,
B747, B757, B767-300, B767-400, A340-500, A340-600, B717, B737,
B747, B757, B767-300,
B767-400, B777, B787-3, B787-8, B787-9
Highlights:
2 Drive cabin with interlock protection, faciltating a easier
cost-saving operation in either drive cabin.
Imported advanced reliable components such as: Deutz Engine, Dana
Transmission, Kessler Axle, Bosch Rexroth
Pump, Eaton Steering Valve, and Park Connector, etc, ensuring a
reliable long duration operation and
performance.
Independent dual circuit braking system to ensure a safety
operation.
Liftable cabin with arch wide view driving cabin, facilitating an
easier view when operating, avoiding fault
operation
.
Equipped with 4 stabilizers to lift up the whole unit to facilitate
maintanence.
Wide view driving cabin, facilitating an easier view when
operating, avoiding fault operation.
Independent heat dissipator for engine, transmission, AC, hydraulic
system and radiator to avoid overheat.
Compact design, low height, and short wheelbase facilitating an
easy and flexible operation.
Transmission-sourced reliable independent braking system, acting on
the disc brakes in the wheels.
Centralized lubricating system, lubricating all greasing points
automatically.
Equipped with emergency steering and emergency braking. Emergency
stop are equipped to stop all actions immediately to prevent
accidents.
Equipped with 4 wheels steering, 2 wheels steering, crab walk and
deviation automatic correction system.
Gear shifting, braking and emergency operation are protected by
interlocks, to prevent maloperation and accidents.
All hitches are easily observable from the drive cabin. An
adjustable reflector and a hitch light are equipped to facilitating
rear hitch observation.
Furthermore, the drive cabin is liftable to facilitating a better
observation on the rear hitch. The drive cabin is equipped with
anti-collision sensor to prevent drive cabin from collide the
aircraft.
