Electric 4.7M3 Cash In Transit Vehicles

Ask Lasest Price
Brand Name :	DIMA
Model Number :	DMT5045XYCEV2-AM
Certification :	ISO9001, CCC
Price :	By negociation
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	2000Units/Year
Delivery Time :	1month

Add to Cart

Product Details
Company Profile

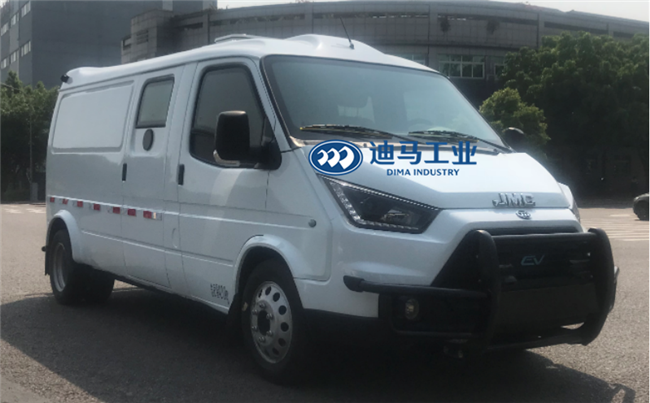

Electric 4.7M3 Cash In Transit Vehicles

Pure Electric Vehicle, Bulletproof And Armor Cash Carrier And Riot-Proof Banknote Box For Bank Armed Escort

Description:

DMT5045XYCEV2-AM is made of JMC touring series pure electric chassis,The drive cabin and the escort compartment are bulletproof on all four sides, and the banknote compartment is riot-proof,The drive cabin and the escort compartment are bulletproof on all four sides, and the banknote compartment is riot-proof, it have very good front view with streamlined and beautiful appearance and set up a banknote transfer hole in the drive cabin, embrasures on both sides of the escort compartment, as well as a color monitoring system.

Main technical parameters

Model	DMT5045XYCEV2-AM
Chassis Model/Chassis manufacturer	JX1040TH25BEV Pure Electric Vehicle/JMC
Drive system	4×2
Overall dimensions L×W×H mm	5790(With front and rear bumpers)×2080×2280 5790(With front and rear bumpers)×2080×2240 5790(With front and rear bumpers)×2080×2140
Banknote box dimensions L×W×H mm	1950×1710×1410(Single layer door/ 1760×1710×1410(double layer door)1950×1710×1360(Single layer door)/ 1760×1710×1360(double layer door) 1950×1710×1160(Single layer door)/ 1760×1710×1160(double layer door)
Volume (M³)	4.7(Single layer door)/4.2(double layer door) 4.5(Single layer door)/4.1(double layer door) 3.9(Single layer door)/3.5(double layer door)
Curb weight (kg)	3030(Single layer door),3140(double layer door)
Gross vehicle weight (kg)	4200
Rated load (including the crew) (kg)	1170(Single layer door),1060(double layer door)
Number of people allowed in the drive cabin (person)	3+3,2+3,3+2
Drive motor model / manufacturing company	TZ260XSDA4
Drive motor rated power / speed / torque(kW/r/min/N.m)	60kW/2046/280
Peak power / speed / torque of driving motor(kW/r/min/N.m)	120kW/4500/800
Battery model / manufacturing company	LSHD144S003P-02A-C1
Total battery energy (kwh)	80.4
Cruising range (40km / h constant speed working condition) (km)(km)	460
Cruising range (heavy vehicle CWTVC city comprehensive working condition) (km)	260
Charging 80% of the time (DC fast charging)(min)	40
Battery pack energy density (Wh / kg)	140
Tread(Front/Rear)(mm)	1700/1645
Wheelbase(mm)	3570
Ground Clearance(mm)	142
Maximum speed (Km / h)	100
Tire specifications	185/75R16C
Bulletproof level	B4-B6
