Configuration table
● ——Original configuration of the chassis
▲ ——Standard configuration
★ ——Optional configuration
● JX1040TC5 second class chassis
● Radio with USB interface
● Front heater
● Front air conditioning system
● Power steering
● Manual rearview mirror
● Radial tires
● ABS
● Reflective vest
▲ Rear air conditioning system
▲ Remote control central control door lock
▲ Manual sunroof
▲ Ventilation channel of escort cabin
▲ All car seat belts (two-point type)
▲ 3-person continuous row seats in escort cabin
▲ Electric lift-type bill transfer holes (also shooting holes) on
both sides of the cockpit
▲ 5 tons jack
▲ The tail door accidentally opened the sound and light alarm
system
▲ Front bumper bumper (made of steel tube, outsourcing)
▲ Rear bumper (with step)
▲ Wear-resistant floor adhesive for escort cabin
▲ Banknote pattern steel plate
▲ Mechanical sliding lock of the front sliding door of the banknote
compartment
▲ Double mechanical lock / gear drive three-way world lock
structure for the rear door of the banknote compartment
▲ Shooting holes on both sides of the escort cabin
▲ Open the door on the right side of the escort cabin
▲ Single-layer single-open rear safety door
▲ Car door auxiliary support device
▲ A 2kg fire extinguisher
▲ Patterned aluminum plate on the lower plane and facade of the
rear door frame
▲ Parking wedge (2 pcs)
▲ Front wheel emergency explosion-proof device
▲ Sound and light warning device for door opening
▲ Remote stop / forced emergency light flashing control system
▲ Car high-definition DVR-720P (six-way camera, monitor the front
and rear of the car, the cockpit, the cash compartment, the left
and right sides of the vehicle)
▲ Two-way voice intercom and emergency alarm
▲ 4G image transmission
▲ GPS satellite positioning
★ Homemade manual sunroof
★ LED reversing spotlight
★ Horizontal jack (3 tons)
★ Horizontal jack (5 tons)
★ Police megaphone (100W)
★ Resolution of vehicle monitoring system
★ Reversing radar
★ Speed limit alarm system
★ Double seat for escort cabin + folding seat
★ Horizontal police lights
★ Strobe light
★ Electric rearview mirror
★ Leather seat cover
★Mechanical code lock on the back door of the banknote compartment
★ Fingerprint code lock on the back door of the banknote
compartment
★ Gun mount
★ Coat hook
★ Manual power switch
★ Cockpit floor paving pattern aluminum plate
★ Floor pattern aluminum plate for escort cabin
★ The patterned aluminum plate on the floor of the banknote
compartment
★ Double-layer single-open rear door (single door single opening,
insurance door single opening)
★ Single-door double-door with rear door
★ Double-deck double doors at the rear and rear doors
★ Double opening of rear door and double opening of rear door
★ Warm air behind escort cabin
★ Sunscreen on the window glass of the cockpit and escort cabin
(excluding front block)
★ Sun film on front block
★ Front bumper (self-made)
★ Stainless steel bumper (double tube) after optional
★ Spraying appearance mark
★ The escort cabin seat is a double seat plus an independent single
seat, the independent single seat can slide back and forth
★ The escort cabin seat is a double seat plus an independent single
seat, the independent single seat can be turned forward as a whole
★ Limiting device added to the rear door
★ Customer-supplied materials for monitoring system
Main technical parameters

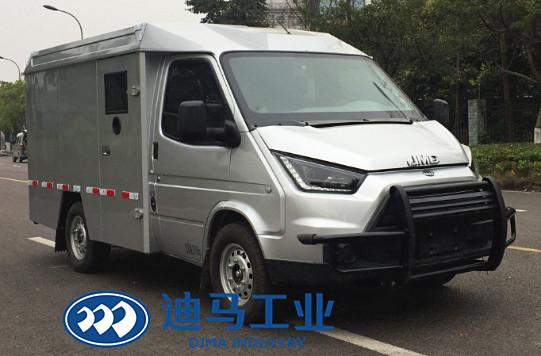

| Model | DMT5047XYCAV5 |
| Chassis/Manufacture company | JX1040TC5/JMC |
| Drive system | 4×2 |
Overall dimensions L×W×H mm | 5326(without front bumper)/5470(with front and rear
bumper)×1980×2260,2300 |
Banknote box dimensions L×W×H mm | 1590×1880×1380(single layer door), 1400×1880×1380 (double layer door) |
| Volume | 4.1(single layer door), 3.6(double layer door) |
| Curb weight (kg) | 2600(single layer door)/2700(double layer door) |
| Gross vehicle weight (kg) | 3510 |
| Rated load (including the crew) (kg) | 910(Single layer door), 810(short vehicle body) |
| Rated passengers | 3+2,3+3,2+3 |
| Engine model | JX493ZLQ5 supercharged intercooled, high pressure diesel engine |
| Displacement (L) | 2.771 |
| Maximum power(Kw/r/min) | 85/3200 |
| Maximum torque(N.m/r/min) | 285/2000 |
| Tread(Front/Rear)(mm) | 1692/1700 |
| Wheelbase(mm) | 2835 |
| Minimum ground clearance(mm) | 165 |
| Maximum speed (Km / h) | 120 |
| Tire specifications | 225/70R15LT |
| Bulletproof level | B4-B5 |
