Armored Personnel Carrier Maintain Social Security Counter
Terrorism And Riots
Armoured personnel carriers, popularly called APCs, have occupied
an important role in military operations since World War I. Modern
APCs such as Patria AMV, Boxer and Piranha V offer enhanced
protection, enabling safer infantry deployment in high-threat
areas. Army-technology.com lists some of the best wheeled armoured
personnel carriers operated today, based on protection and
mobility.
The DIMA DMT5090XFB Armored Personnel Carrier is built on special
designed military chassis, integrating DIMA’s most advanced
technology and 10-year-experience in armored vehicle, communication
vehicle, high-tech police vehicle and anti-riot vehicle, guarantees
outstanding performance of the APC.
The vehicle body is formed with declining bulletproof plates, which
makes vehicle shape to a special angle, and reduces the impact of
bullets. Roomy space, air condition and heater and ventilation
system brings comfort to the passengers, guarantee the battle
effectiveness after long-time traveling.
Vehicle Body Protection: Six-side bulletproof, protect against CEN
B5 or CEN B6 level. Also protect against explode on the bottom of
vehicle.
The DIMA APC is widely used for various missions, such as
anti-riot, anti-terrorism and troop transport. DIMA APC is designed
as a multi-function platform, depends on different application, it
could modified to be Armored Communication Vehicle, Armored Scout
Vehicle, Armored ammunition Carrier and Armored Ambulance.
- Various Protection Functions
Beside bulletproof capability, the windshield of vehicle is
equipped with anti-riot wire mesh. It protects the glass surface
and keeps clean view for driver. Automatic fire extinguish system
in engine cabin will put out the fire in emergency; The push plate
can push the barrier in front of the vehicle; Self-saving
electrical winch is mounted in front.

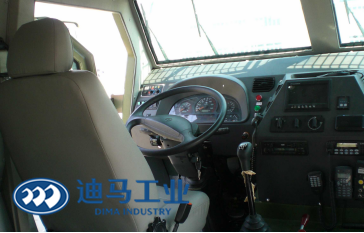

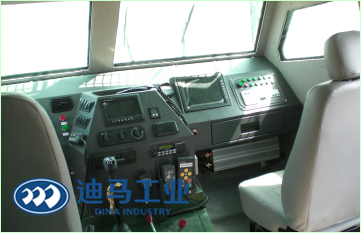

Drive cab with large scope windshield and side windows; Hidden
cameras around the vehicle, provides non-blind spot view for the
commander. All images are recorded in the hard disk. The Passive
Infrared View is equipped in the front, providing clean view when
night and fog. Also there are bulletproof windows on both sides and
the rear door, equipped louvers and rotating turret.

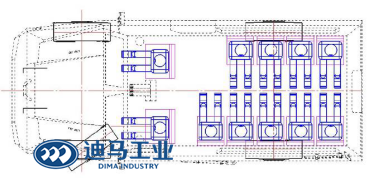

With the wide tread chassis, the interior space is large and
comfort. Three gates (front, middle and rear) makes crews can
transfer fast. The heavy duty air condition and heater keeps
suitable temperature in the vehicle. The soft benches, heat & noise
insulation interior trim are provided for the safety and comfort of
driver and passengers.
Grade ability & Wading depth
Rolling Testing 35°
Climb Testing 30°
| Item | Parameter |
| Dimensions (mm) | Overall Dimensions | 6710(7180 with push plate)x2440x3090 |
| Tread | 1965/1965 |
| Wheelbase | 3600 |
| GVW (kg) | 9450 |
| Curb Weight (kg) | 8400 |
| Max Loading (kg) | 1050 |
| Front/Rear Axle Loading: | Front: 4.5 T ; Rear: 5 T |
| Approaching Angle | 30°(without push plate) |
| Departure Angle | 30°(without push plate) |
| Grounding Clearance (mm) | 300 |
| Max. Speed (km/h) | 120 |
| Max. Grade Ability | 60% |
| Max. Driving Side of the Slope | 40% |
| Ramp-over angle | 32° |
| Wading Depth (mm) | ≥900 |
| Min. Turning Diameter (m) | ≯15 |
| Engine | Engine Model | CUMMINS ISDe210-30 |
| Displacement | 6.7L |
| Max. Power | 155kW/2300/min |
| Max. Torque | 640Nm/900-2300r/min |
| Transmission | 6+1(High/Low Speed) ; 6 forward gears all with synchronizer, 1
reverse gear |
| Suspension | Leaf spring with damper |
| Brake | Service Brake
4-wheel dual-circuit pneumatic brake, drum brake, , Parking Brake
Rear brake, drum, drum, air pressure control |
| Steering System | Front steering, hydraulic powering steering |
| Tyre | Tubeless radial tire, with run-flat device |
| Power Voltage | 24V |
| Bulletproof Level | Four side (verticals) o provide protection against 7.62x51mm M80
NATO Ball ammunition, in accordance with CEN Level BR6, at zero
degree obliquity angles with 6.5mm ballistic steel of 500 Brinell
hardness rating. Roof protection: CEN Level BR5
Floor of the vehicle is fitted with a blast protection to protect
occupants against fragmentation from simultaneous detonation of 2
DM-51 German ordnance hand grenades or equivalent. |
| No. | Item | Note |
| 1 | Vehicle Armored Body & Armored Glass | Six-side protect |
| 2 | Air Condition system | Refrigerating capacity 10000 kilocalorie |
| 3 | Air Condition Compressor | ZEXEL, JAPAN |
| 4 | Heat system | NONE |
| 5 | Engine cabin automatic fire extinguisher device | Guarantee the safety of engine cabin |
| 6 | Lifting spotlights & camera | 360° rotatable |
| 7 | Roof rotating firearm mount | 360 ° free rotation manually, omnidirectional shooting |
| 8 | Rotundity stroboflash alarm lamp | On 4 corners of roof, 2 blue & 2 red |
| 9 | Loudspeaker | 200W |
| 10 | Radio | GM3688 Motorola Radio |
| 11 | Gun ports | 7 gunports, with view window |
| 12 | Crew seats | 11 persons |
| 13 | Crew compartment portable fire extinguishers | 2 fire extinguisher |
| 14 | Electric winch | |
| 15 | Windshield anti riot shell | 10 windows |
| 16 | Centralized lubrication system | Automatic lubricating chassis lubrication points |
| 17 | Hydraulic push board | Push hinder in front of the vehicle |
| 18 | Monitoring system | 7 pin camera, monitoring and video record |
| 19 | Passive infrared monitoring system | Monitoring and recording at night, driving without light |
| 20 | Run flat tyres | 4 /vehicle, 30Km/h to run nearly 50KM when shoot |
| 21 | Rearview Camera | |
