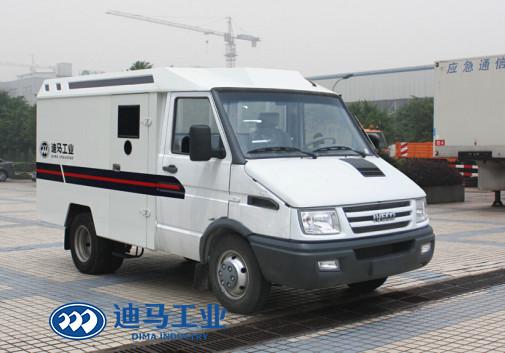

Strong Load Capacity Of DMT5048XYCD2 Bulletproof Cash Carrier With
Camera GPS
Description
The chassis used in the DMT5048XYCD3 banknote transporter is the
reinforced chassis NJ1045ACCZ produced by Nanjing Iveco Automobile
Co., Ltd.,. The chassis is specially developed by the chassis
manufacturer according to the needs of our company and is specially
used by our company. The vehicle has strong load-bearing
performance and is more suitable for the reform of the banknote
transport vehicle. It also ensures the reliability of the modified
banknote transport vehicle, strong load capacity, and good
operation stability.
Special design aspects:
1. Adopt Iveco Automobile Co., Ltd. special cargo-carrying chassis,
rear two-wheel design, strong bearing capacity and good operation
stability. The chassis is European technology with high
reliability.
2. Unique square box-shaped appearance, strong and powerful for
escort companies; according to the heavier characteristics of the
banknote transporter, the key parts are specially strengthened, and
the middle door and the rear safety door are added, which has a
stronger carrying capacity and more Long service life;
3. The side door of the escort cabin adopts a side-opening door
structure, and special strengthening treatment is made, which is
convenient and reliable to open and close, and has a longer life.
It completely solves the problem that the side door of the escort
cabin uses a sliding door to fall easily. In an emergency, it can
also be used as a bulletproof shield to protect against powerful
enemies;
4. The electric lifting bill transfer holes on the left and right
sides of the cab can usually facilitate the transfer of bills,
crossing roads and bridge costs, and can be used as a shooting hole
for self-defense in an emergency; the shooting holes on the left
and right sides of the escort cabin are convenient for returning;
5. The color camera monitoring system can monitor the inside of the
banknote compartment and the rear of the car at any time. When
reversing, it automatically switches to the rear view to facilitate
the driver to understand the rear of the car. When the banknote
compartment is opened, it is forced to switch to monitor the
internal situation of the banknote compartment. ; Multi-channel
cameras can be added according to customer needs for full-range
monitoring.
6. The audible and visual alarm when the tailgate opens
unexpectedly can monitor the condition of the tailgate at any time.
When the tailgate opens unexpectedly, it can prompt the driver
through sound and light to deal with it in time;
7. The front insurance door of the banknote compartment adopts a
middle sliding door, and the rear insurance door adopts a single
door to increase the actual use volume of the banknote compartment,
and a limit device after opening the door is installed to ensure
that the vehicle can be easily loaded and unloaded on any road
surface;
8. The rear door of the banknote compartment adopts a professional
world lock mechanism, which is flexible, concise and reliable in
structure; the front sliding door of the banknote compartment
adopts a touch lock and a world lock structure, which is convenient
and reliable to close;
9. Forced ventilation channel in the cockpit, equipped with
ventilation skylights, can enhance the air exchange inside and
outside the car, and improve comfort;
10. The seating area can be equipped with tea cup holders, coat
hooks, helmet holders, etc. to provide a convenient and comfortable
riding environment for the passengers in the car.
Configuration table
● ——Original configuration of the chassis
▲ ——Standard configuration
★ ——Optional configuration
● Radial tires
● FM AM radio + MP3 player
● Front heating and cooling system
● Power steering
● Co-pilot double seat
● Electric rearview mirror
● Main power switch
● Front and rear disc brakes
● ABS system
● Reflective vest
▲ Rear air conditioning system
▲ Remote control central control door lock
▲ Parking wedge (2 pcs)
▲ Front wheel emergency explosion-proof device
▲ Sound and light warning device for door opening
▲ Remote stop / forced emergency light flashing control system
▲ Car high-definition DVR-720P (six-way camera, monitor the front
and rear of the car, the cockpit, the cash compartment, the left
and right sides of the vehicle)
▲ Two-way voice intercom and emergency alarm
▲ 4G image transmission
▲ GPS satellite positioning
▲ Manual sunroof DS770A
▲ Ventilation channel of escort cabin
▲ All car seat belts
▲ Three-row bench seat in escort cabin
▲ Electric lift-type bill transfer holes (also shooting holes) on
both sides of the cockpit
▲ Shooting holes on both sides of the escort cabin
▲ Mechanical latch of the front door of the banknote compartment
▲ Double mechanical lock / gear drive three-way world lock
structure for the rear door of the banknote compartment
▲ Patterned steel plate on the floor of the cash compartment
▲ Wear-resistant floor adhesive for escort cabin
▲ Two-way limit device of banknote compartment door
▲ Rear tailgate exhaust pressure relief system
▲ Auxiliary support for anti-falling door
▲ Open the door on the side of the middle door
▲ Single door and single door opening
▲ Rear bumper with pedal
▲ 5 tons jack
▲ 2kg fire extinguisher
★ LED reversing spotlight
★ Low roof body (THB2)
★ Resolution of vehicle monitoring system
★ Electric sunroof
★ Homemade escape skylight
★ Police megaphone
★ Anti-theft alarm
★ Reversing radar
★ Front stainless steel bumper
★ Rear stainless steel bumper
★ Compulsory ventilation system of escort cabin
★ Speed limit alarm system
★ Escort cabin 2 + 1 seats
★ Horizontal police lights
★ Cockpit pattern aluminum plate
★ Pattern aluminum plate for escort cabin
★ Pattern aluminum plate
★ Overlaying rubber sheets on the floor of the cash handling
compartment
★ Co-pilot single seat
★ Manual swing out door
★ Double door opening
★ Double-layer single opening of rear door
★ Double door double opening
★ Double opening of rear door and double opening of rear door
★ Leather seat cover
★ Seat cover
★ Mechanical code lock on the back door of the banknote compartment
★ Fingerprint code lock on the back door of the banknote
compartment
★ Install heater in escort cabin
★ Built-in flashing headlight
★ Toolbox under the seat
★ Co-pilot single seat
★ Horizontal jack (3 tons)
Horizontal jack (5 tons)
★ Gun mount
★ Coat hook
★ Body appearance pattern
★ The window glass of the cockpit and escort cabin is attached with
solar film
★ The escort cabin seat is a double seat plus an independent single
seat, the independent single seat can slide back and forth
★ The escort cabin seat is a double seat plus an independent single
seat, the independent single seat can be turned forward as a whole
Main technical parameters
| Model | DMT5047XYCD3 |
| Chassis/Manufacture company | NJ1045ACCZ/IVECO |
| Drive system | 4×2 |
Overall dimensions L×W×H mm | 5220,5380(with front bumper)×2000×2420,2250(low roof) |
Banknote box dimensions L×W×H mm | 1520×1920×1615(1450 low roof) |
| Volume | 4.7, 4.2(low roof) |
| Curb weight (kg) | 3000,3100 |
| Gross vehicle weight (kg) | 4480 |
| Rated load (including the crew) (kg) | 1480,1380 |
| Rated passengers | 2+3, 3+3 |
| Engine model | SOFIM8140.43S5 inline four-cylinder supercharged intercooled high
pressure common rail direct injection diesel engine |
| Displacement (L) | 2.798 |
| Maximum power(Kw/r/min) | 95/3200 |
| Maximum torque(N.m/r/min) | 300/1800 |
| Tread(Front/Rear)(mm) | 1695/1540 |
| Wheelbase(mm) | 2800 |
| Minimum ground clearance(mm) | 222 |
| Maximum speed (Km / h) | 120 |
| Tire specifications | 6.50R16LT |
| Bulletproof level | B4-B6 |
