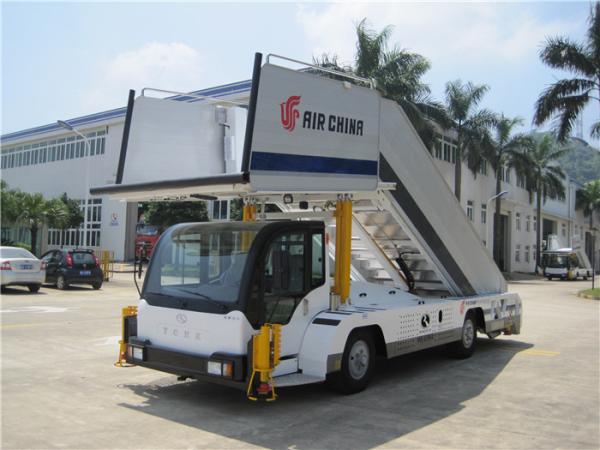

27 Staris 60 KM/H B757 Airport Stair Vehicle
TK-eKT58 Electric Passenger Stair is a newly designed pure electric driven passenger stair
consisting of specialized chassis, fixed stair flight, mobile
stairs flight, adjustable guard rails, triangular lifting system,
platform assembly, stabilizers, hydraulic system and electrical
system, it is applicable for aircraft ranges from 2300-5800mm, with
robust structure, wide service range, long time operation, high
technology and complete function.
Specifications:
| Overall L*W*H | 8000*2645*3680 mm | Payload | 8160 KG |
| Wheelbase | 3200 mm | Maximum Speed | 60 KM/H |
| Turning Diameter | 16500 mm | Minimum Stable Speed | 0.8 (Turtle speed) /3km/h worm speed |
| Gross Vehicle Weight | 8800 KG | Working Temperature | -30-60℃ |
| Service Range | 2300-5800 mm | Recharge Mileage | 100 KM |
| Number of Stairs | 12+15 | Recharge Mileage (Large Airport) | 84 KM+40 rounds |
| Stair Dimensions | 276*1500*192 mm | Recharge Mileage(Medium Airport) | 83 KM+40 rounds |
| Platform Load | 2000 KG | Recharge Mileage (Small Airport) | 82 KM+41 rounds |
| Stair Load | 220 KG | Charging Method | Rapid charging (500-750V DC) |
Suitable for medium to large aircraft such as A300, A310, A320,
A340, A380, B727, B737, B757, B767, B747 etc.
Highlights:
Adopting TECHKING special chassis, featuring low gravity,higher
load capacity and more safety operation. 3 people on each steps and
16 people on platform, superior than standards' requirements of 2
people on each steps and 8 people on platform.
Weather-tight open driving cabin, facilitating an easier view when
operating, avoiding fault operation.
Equipped with 3mm thick non-skid aluminum alloy steps with
aluminium alloy side plate, ensuring elegant desgn as well as a
safer boarding experience.
Low gravity center and high stability specialized chassis, more
stable and reliable.
Branded lithium iron phosphate battery, electric motor and electric
control system ensure a long-time reliable performance.
Patented anti-slippery aluminum alloy stairs, side panel and
arch-handrails, featuring with good ergonomic and safety design.
Custom proven and time approved structural design, featuring with
the most optimized wind-resistant stability and structural
strength.
Optional ASD, 360 surveillance, remote surveillance and IOT.
TECHKING is one of the largest Ground Support Equipment
manufacturer incorporated since 1999.
At TECHKING, we realize our customer's confidence is relying on us,
knowing that our equipment is dependable and reliable. We are
constantly improving and strengthening our service and products to
keep things runnning smoothly and constantly. With years of
constatnly research and development in the GSE field, TECHKING now
provides dependable and reliable GSE products in 18 series and over
50 different types to meet the full range of demands..
Adhere to the aim of optimizing cost and efficiency, TECHKING has
successfully won it's acknowlegment and aapproval by all the major
airlines and airports in China as welll as customers from 20
different countries and areas and now has grown to the leader of
ground support equipment manufacturer in China.
With our expertly trained and vastly experienced staff, TECHKING
has been providing 24/7/365 services, from manufacture to delivery
commissioning, training to after-sale services, assuring ou the
most dependable on-the-ramp performance.
