    CE certificated GSE Conveyor Belt Loader

    Ask Lasest Price
    Brand Name : TECHKING
    Model Number : TK-XC80C
    Certification : CCC, CE
    Price : By negociation
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 20 Units per Month
    Delivery Time : 90 Days
    • Product Details
    • Company Profile

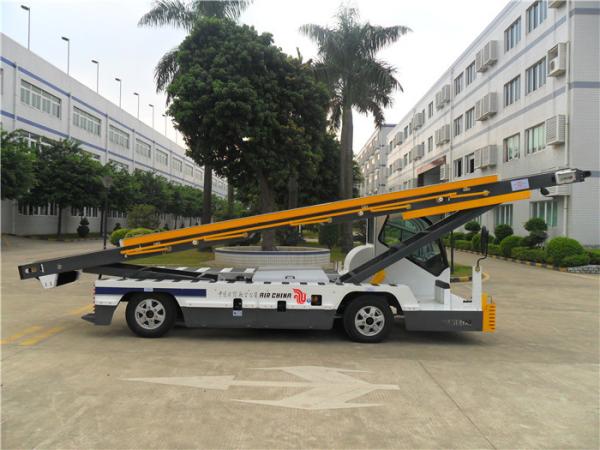

    CE certificated GSE Conveyor Belt Loader

    CE certificated GSE Conveyor Belt Loader


    Conveyor Belt Loader, Self-propelled or Towed, Diesel or Electric version. Operational height suitable for each Customer’s request. Depending on requirements, the conveyor boom can be 8000 to max and can be equipped with rear lifting scissors. Modular belt with elastomer grips, no need for alignment or tensioning, so it makes easy the replacement of even small parts not the whole belt, adjustable belt speed from 0.2-0.5m/s

    Fully compliance with IATA standard even the latest AHM 913 related to safety and security provision to operator and aircraft as well. Thanks to the latest technology of anti-collision approach system, tortoise and snail speeds, bumper with sensor to stop the vehicle once touches the body of the aircraft.


    DimensionsPerformance
    Overall Dimensiosn8130*2145*1955mmMaximum Speed25km/hr
    Wheelbase3000mmFront End Service Range1200-4325mm
    Front Wheel Tread1725mmRear End Service Range525-1379mm
    Rear Wheel Tread1695mmBoom Uniform Load135kg/m
    Minimum Turning Radius6400mmCargo Weight Limit400kg
    Ground Clerance130mmConveying Speed0.2-0.5m/s
    Gross Vehicle Weight3660kgBoom Belt Width600mm

    Applicable Aircraft:


    Suitable for all civil aircrafts including A380.


    Hightlights:


    AdoptingISUZU C240 engine and OKAMARU automatic transmission

    8 meter conveyor boom, suitable for all aircraft such as B737, B727, B767, B777, A320, A321, A330 and A380 etc.


    Adopting top brand hydraulic system components such as steering cylinder and stabilizers.


    Robust structural design, compact and durable.


    PLC controlled electrical system, reliable and easy to diagnose.
