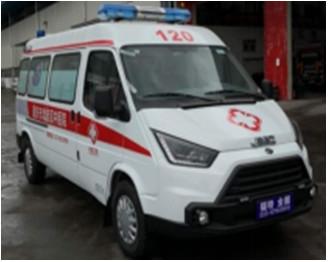

First Aid 120Km/h 83KW Negative Pressure Ambulance 2.771L

Ask Lasest Price
Brand Name :	DIMA
Model Number :	DMT5047XJHV3
Certification :	CCC/ISO
Price :	By negociation
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	2000 Unit/year
Delivery Time :	40 working days

Add to Cart

Product Details
Company Profile

First Aid 120Km/h 83KW Negative Pressure Ambulance 2.771L

Medical First Aid Patient Transfer Negative Pressure Ambulance

Technical Parameters of ambulance

Project	Parameters
Chassis Model/Chassis Manufacturer	JX6570T-M5/Jiangling Automobile Co., Ltd.
Drive form	4 × 2
Shape of the whole vehicle (mm) (length × width × height)	5496/5696 (with rear step) × 1972 × 2355/2740 (high top)
Medical compartment dimensions (mm)	3000 × 1730 × 1500/1885 (high top)
Readiness mass (kg)	2450
Total mass (kg)	3510
Rated load mass (kg) (including occupants)	1060
Permitted number of passengers in the cab (person)	6-8
Engine type and type	JX493ZLQ5 Turbocharged Intercooled Diesel Engine
Displacement (L)	2.771
Emission standard	Country V
Maximum power (Kw/r/min)	85/3200
Maximum Net Power (Kw)	83
Maximum Torque (N.m/r/min)	285/2000
Wheel Moment (Front/Rear) (mm)	1692/1700
Wheelbase (mm)	3570
Minimum Ground Clearance (mm)	143
Maximum speed (Km/h)	120
Tire size	225/70 R15LT
Battery Voltage (V)	12

Configuration of ambulance	Quantity
Anti-lock Braking System (ABS)	/
Power Steering	/
Front warm air	/
Front air conditioning system	/
Cab 3 Seat	/
Driver's airbag	/
Cab Power Window	/
Central control door lock	/
Reversing radar	/
Rear double door	/
Rear boarding pedal	/
Install transparent glass, and stick milky opaque explosion-proof film on 2/3 of the rear door, left and right windows.	/
Safety handrails are installed at the top of the medical cabin.	1
12V infusion auxiliary spotlight	2
The top of the medical cabin is equipped with square lighting lamps.	4
Ultraviolet sterilization lamp	1
Installation of electrical control box in cab	1
Intelligent automatic charging system (1000W for vehicle-mounted 12V/220V inverter power supply system)	1
Cab 12v socket	1
Install 12V socket in medical cabin	2
Portable 220V power socket is installed on the left side of medical cabin	4
220V/16A waterproof external power socket with protective cover	1
Install alarm and warning light control button in cab	1
Long rows of blue lights are installed at the front and top of the roof.	1
Strobe lamp installed at the rear of the vehicle	2
Installation of off-site lights at the rear of the vehicle	2
The front middle net is equipped with LED flashing lights.	2
Strobe lamps installed on the left and right sides of the body	2
Install lights on the left and right sides of the body	2
The cab and the medical cabin shall be equipped with a middle partition wall to separate the front and rear carriages, and the partition wall shall have a visual window.	1
The medicine cabinet body is installed behind the middle partition wall	1
The top of the left side of the medical cabin shall be equipped with hanging cabinets, floor cabinets and control tables	1
The left rear side of the medical cabin is equipped with a cabinet capable of holding 2 10-litre oxygen cylinders.	1
Install equipment fixing device on the left side of medical cabin (embedded)	1
Install 3-person long-row seats on the right side of the medical cabin	1
The medical cabin is equipped with air conditioning system.	1
Before and after installation of intercom system in medical cabin	1
A closed central oxygen supply system is installed on the left side of the medical cabin.	1
A special oxygen socket for humidifier is installed on the left side of the medical cabin	1

Project	Quantity
The left side of the medical cabin is equipped with a matching humidifier.	1
Medical compartment 10-litre oxygen cylinder (with pressure reducing valve)	2
The top of the medical cabin is equipped with a set of foldable infusion bottle suspension device.	1
1kg fire extinguisher and support frame shall be installed at the rear and rear of the medical cabin	1
The interior board of the medical cabin is made of acid-resistant, alkali-resistant, fire-resistant, skid-resistant and antistatic floor leather.	1
The medical cabin is equipped with domestic automatic stretcher (including stretcher baffle, wear-resistant layer and guide rail)	1
The exterior of the car body is made according to the customer's requirements.	1
Optional co-pilot single seat	1
Optional monitoring seat at the middle door (three-point safety belt)	1
Optional roof-mounted two-way ventilator	1
Optional domestic negative pressure system: MK2550E-23L-A21 air volume: 118 m/h filtration efficiency: maximum aerosol leakage rate 0.0362% noise: 73.5 dB input voltage: 220V	1
Optional 360 Loop System	1
Optional medical equipment such as ventilator, defibrillator, electrocardiogram, aspirator, etc.	/

Application Scope of ambulance

Medical first aid, patient transfer
