AMBULIFT FOR AIRPORTS
Special adaptations to vehicles for use in airports. Special
vehicle for transporting persons with reduced mobility,
wheelchairs, stretchers, etc. for boarding airplanes.
The body can be installed on vehicles of all brands: VOLVO, IVECO,
MAN, RENAULT, SCANIA, MERCEDES, etc.
Allows the transportation of people with reduced mobility or using
wheelchairs, and offers safe, comfortable access to the passenger
cabin of all types of aircraft.
The module has fastening systems that use rails attached to the
ground in order to secure wheelchairs.
It also has a series of fold-down seats along one of its sides so
that other passengers or attendants may sit.
Description:

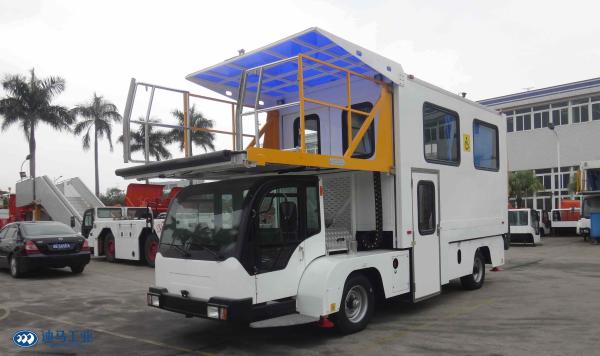

The TK-TD60A Ambulift is CE certified. It is in full compliance
with CAAC and European CE standards, such as, IATA AHM 921A, IATA
AHM 910, IATA AHM 913, IATA AHM 915.
Specifications:
| Dimensions | | Performance Data | |
| Overall Dimensions | 6740*2500*3800 mm | Maximum Speed | 45 km/hr |
| Wheelbase | 3300 mm | Front Platform Service Range | 2200-6000 mm |
| Vanboday Dimensions | 4240*2400*2280 mm | Rear Platform Service Range | 0-500 mm |
| Front Wheel Tread | 2015 mm | Telescopic Platform Extension Range | 1100 mm |
| Rear Wheel Tread | 2015 mm | Vanbody Load Capacity | 1000 kg |
| Minimum Turning Radius | 17300 mm | Wind Resistance | 3.35 |
| Ground Clearance | 180 mm | | |
| Gross Vehicle Weight | 9500 kg | | |
Applicable Aircraft:
Suitable for all major civil aircraft including A380.
Highlights:
Special designed chassis, featuring with low gravity center, good
stability and high wind resistance.
Adopting branded power train and hydraulic components ensuring a
reliable performance.
4-way adjustable platform front platform facilitating an easy
docking operation
Air conditioned conditioned passenger cabin, suitable for hot
weaters such as Middle-east.
PLC controlled hydraulic actions, reliable and easy to diagnose.
Safety Features:
Emergency Stop Button
Emergency Platform Withdraw
Anti-collision Sensor
Interlock to prevent moving when vanbody lifted
Interlock to prevent vanbody lifting when stabilizers not fully
extended
Interlock to prevent vanbody descending when stabilizers not fully
retracted
Interlock to prevent staibilzers retraction when vanbody is not
fully descended
Interlock to prevent hydraulic movements unless parking brake
engaged
Emergency Manual Pump
